Introducing The Scottie Globemaster SDR

  • Innovative
  • Ultra-compact
  • High power
  • Clean spectrum SDR
  • Wide operating frequency range

Specification Overview:

  • Frequency range 1.8MHz to 1300MHz
  • Power Output : 1.8 - 75MHz up to 38 Watts PEP on the HF bands. Additional VHF/UHF Band Option to 23 cm. 2 Watts PEP
  • RX/TX Band Pass Filters resulting in reduction of RX IMD, out of band interference and TX Harmonics
  • Receiver Sensitivity: MDS, 500 Hz BW  -131dBm (70 MHz).
  • Selectable HF LNA ( +18dB) and Attenuators (30 dB range).
  • Transmitter RF Output Linearity: IMD of -47dbc measured at +37dbm.
  • Spectral purity: Low Carrier ( -70dbc), Image (-60dbc)  and Harmonic Levels ( <-60dbc).
  • Standard Frequency Stability (0.5ppm), Resolution (1Hz).
  • Extreme Frequency Stability Option - (0.017ppm) - (with Scottie Drift Zapper unit fitted).
  • All Modes: CW SSB Data AM FM. - Optimised for Data Mode Operation.
  • Zero Latency CW performance  - up to 80 wpm. Embedded Multi Mode Iambic Keyer with Side Tone Output.
  • Robust Thermal Design and Performance, Silent Operation - No Fans required.
  • High Reliability Design -  Several thousand hours of development testing !
  • 'Burn In' testing applied on every unit.
  • Rear Panel facilities: USB Control, Ext. Amp / Transverter Control, CW Side tone, ATU Control, CW Key, +13.8V PSU, UHF RX and TX SMA and HF Antenna BNC connectors.
  • Rugged Enclosure, available in four anodised colours. Size:  30mm X 125 mm X 165 mm. - Coat pocket size! Weight: 570 gm.
  • USB control for general operation using Quisk 4.1.41, HDSDR V2.76 and FLEX V2.4.4 and for firmware enhancements
  • Supported operated systems are Microsoft Windows 7 and 10 or an Odroid N2 SBC. mini-PC
  • For a no-hassle Turn-Key operation a Linux O.S. SD Card compatible with the Odroid N2 is available - the SD card contains  Quisk, Fldigi, WSJT-X and QSSTV GUIs which are fully integrated for immediate use with a standard HDMI Monitor.
  • Comprehensive Documentation supplied, plus Professional On-Line Technical Support, visit https://groups.io/g/globemaster
  • Build Your Own Globemaster KIT OPTIONS are also available - only high quality components used - easy procurement from major suppliers. - Great for the avid builder.
  • Power requirements: +13.8 Volt Supply @ 5 Amps (continuous rating)

Scottie Globemaster

Scottie Globemaster SDR - Ultra Compact Design



Laptop System

Scottie Globemaster SDR - The Base Station Solution



Odroid System

The Globemaster Compact Portable Configuration

The Compact configuration above shows the Scottie Globemaster SDR / CW Keyer, Odroid N2 SBC Mini PC and 7 inch HDMI Display. Fully Integrated Linux OS including: Quisk, Fldigi, WSJT-X, QSSTV and JS8Call

Quisk

The Globemaster Operating with Quisk



The Globemaster Case Rear View

New Products For November

Scottie Drift Zapper
Scottie Drift Zapper
£45.00  £39.00
Save: 13% off
Scottie Globemaster (kit option 1, red case)
Scottie Globemaster (kit option 1, red case)
£599.00  £489.00
Save: 18% off
Scottie Globemaster (kit option 1, blue case)
Scottie Globemaster (kit option 1, blue case)
£599.99  £489.00
Save: 18% off
Scottie Globemaster (kit option 1, silver case)
Scottie Globemaster (kit option 1, silver case)
£599.99  £489.00
Save: 18% off
Scottie Globemaster (kit option 1, black case)
Scottie Globemaster (kit option 1, black case)
£599.99  £489.00
Save: 18% off
Scottie Globemaster (kit option 4)
Scottie Globemaster (kit option 4)
£84.99  £69.00
Save: 19% off

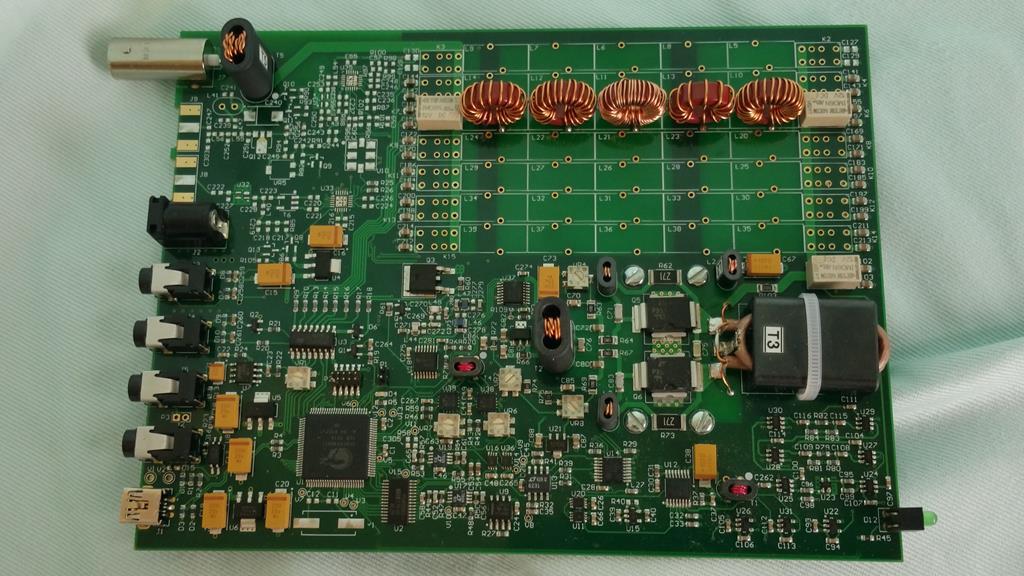

Scottie Globemaster (kit option 2)
